C201H
FORKLIFT

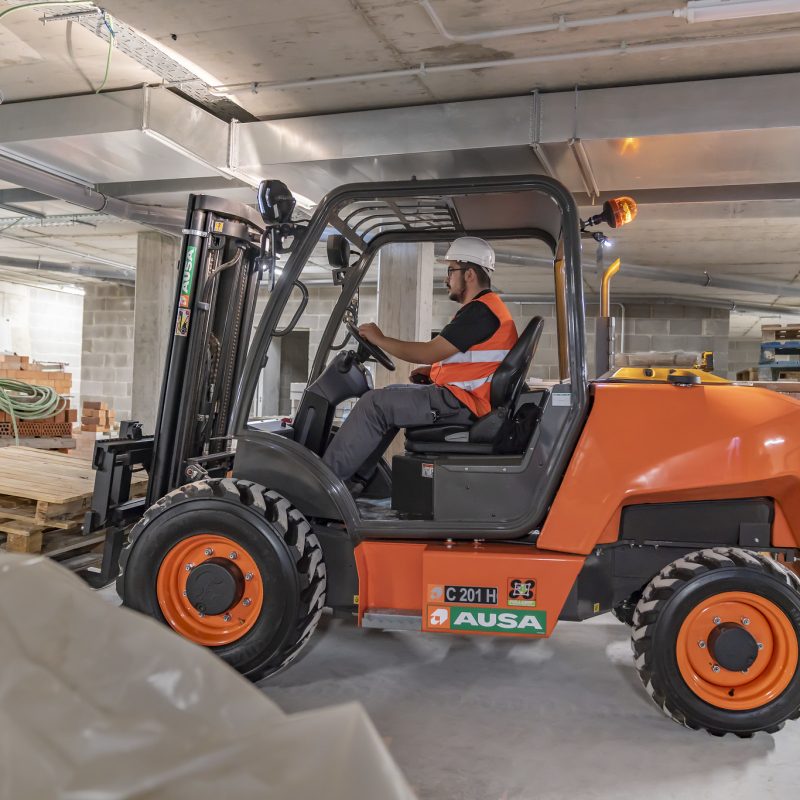

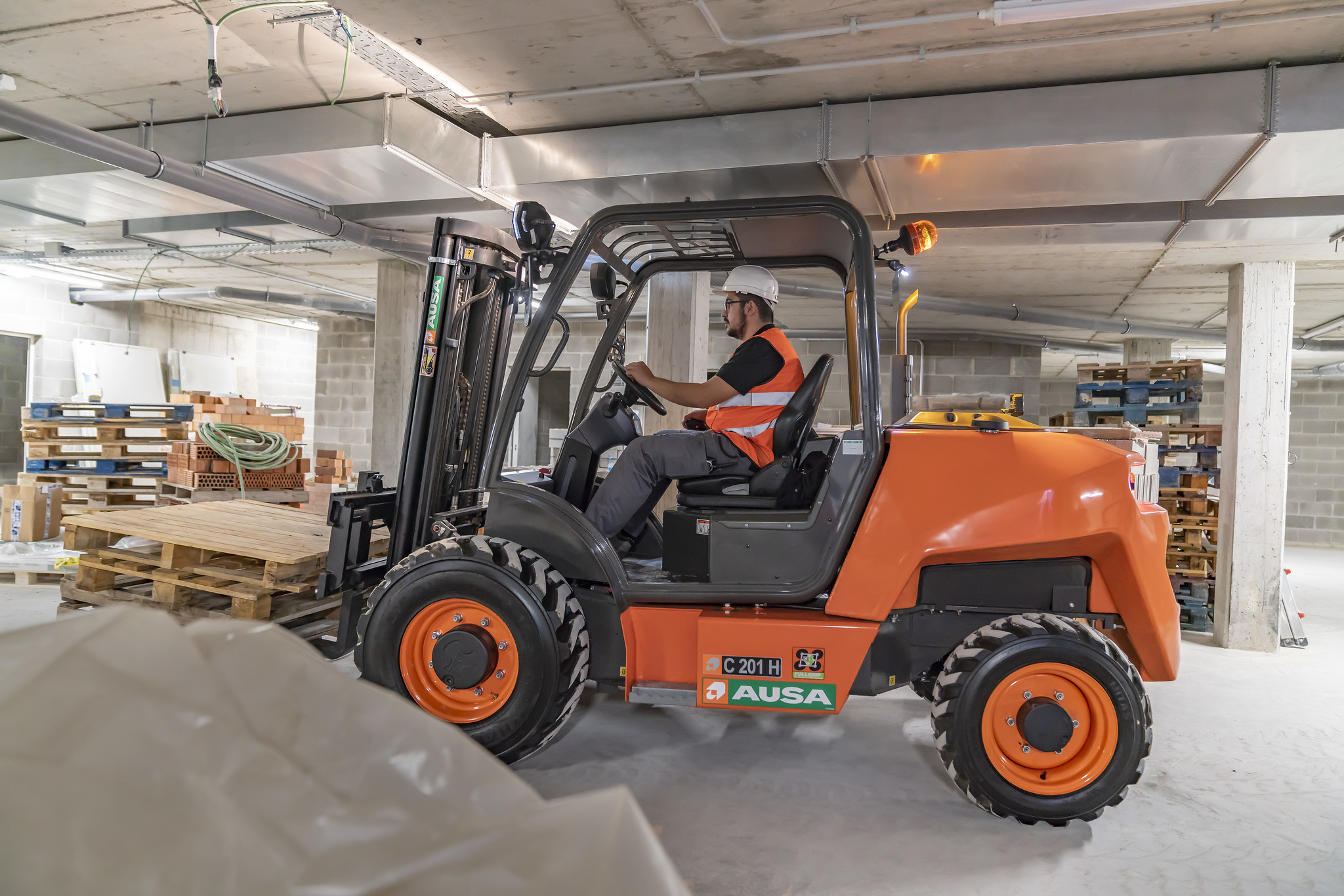

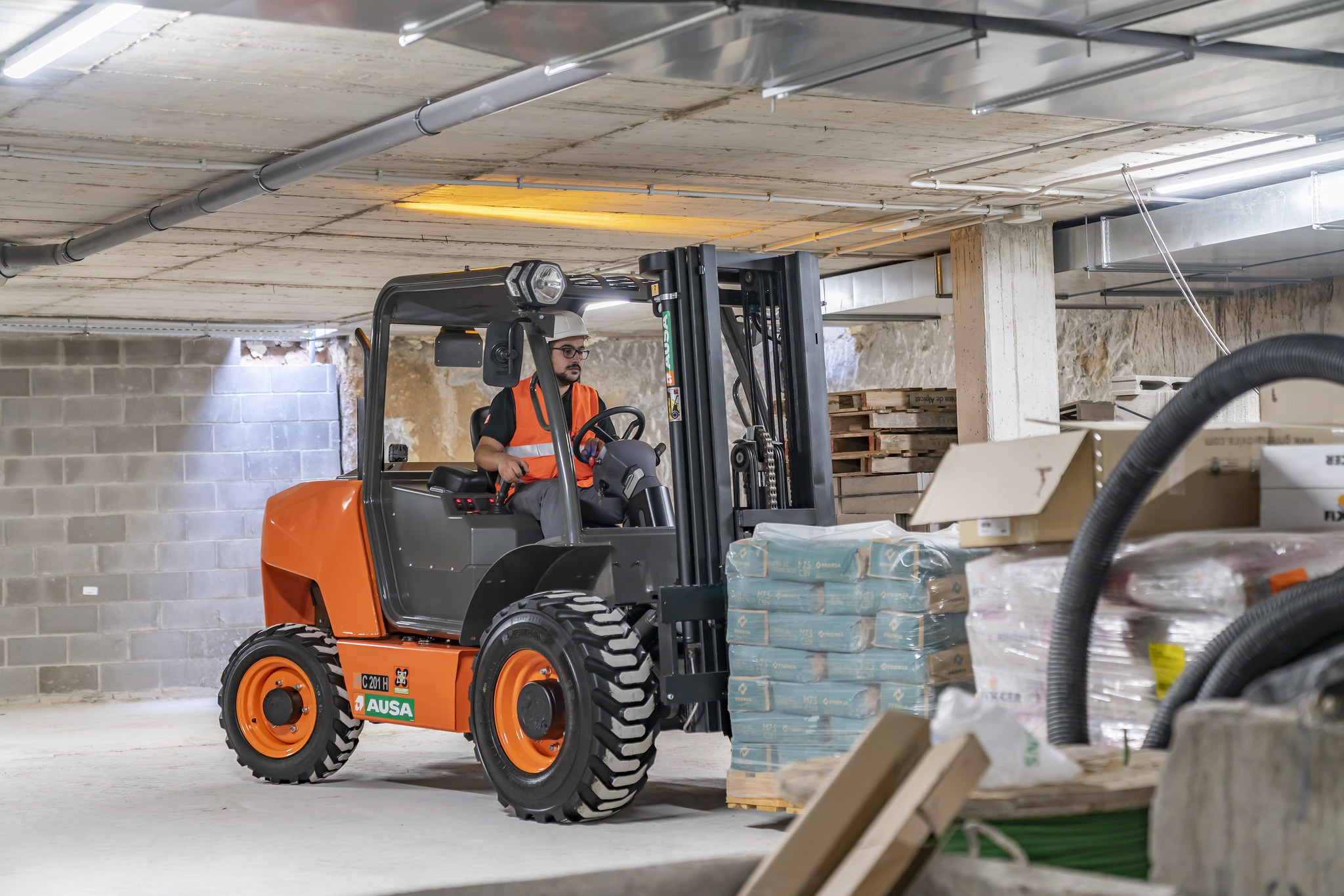

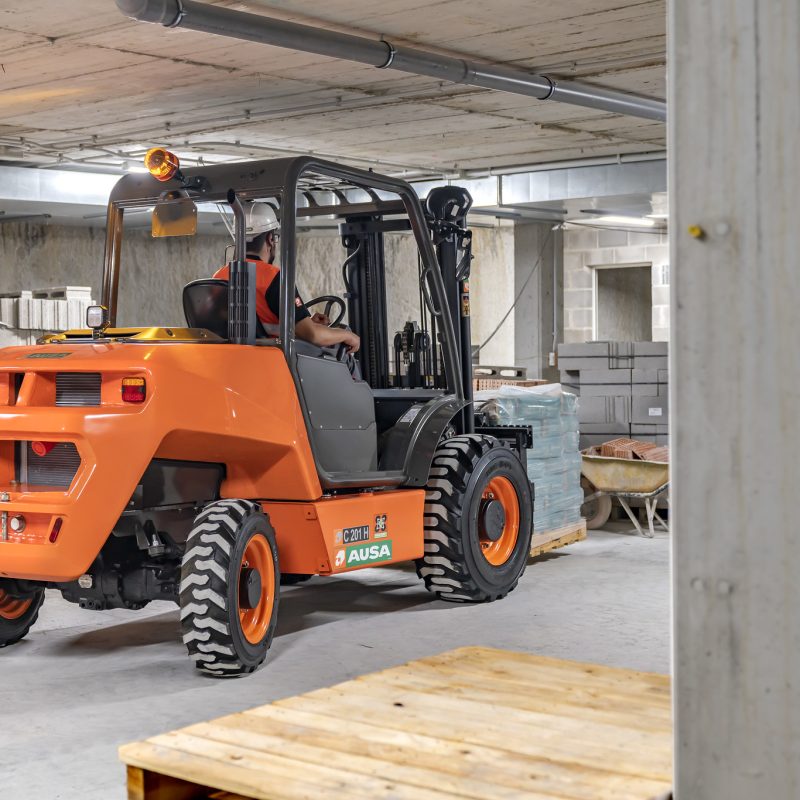

The C201H all-terrain forklift has a 2000 kg (4,000 lb) payload and it is designed entirely for urban use.

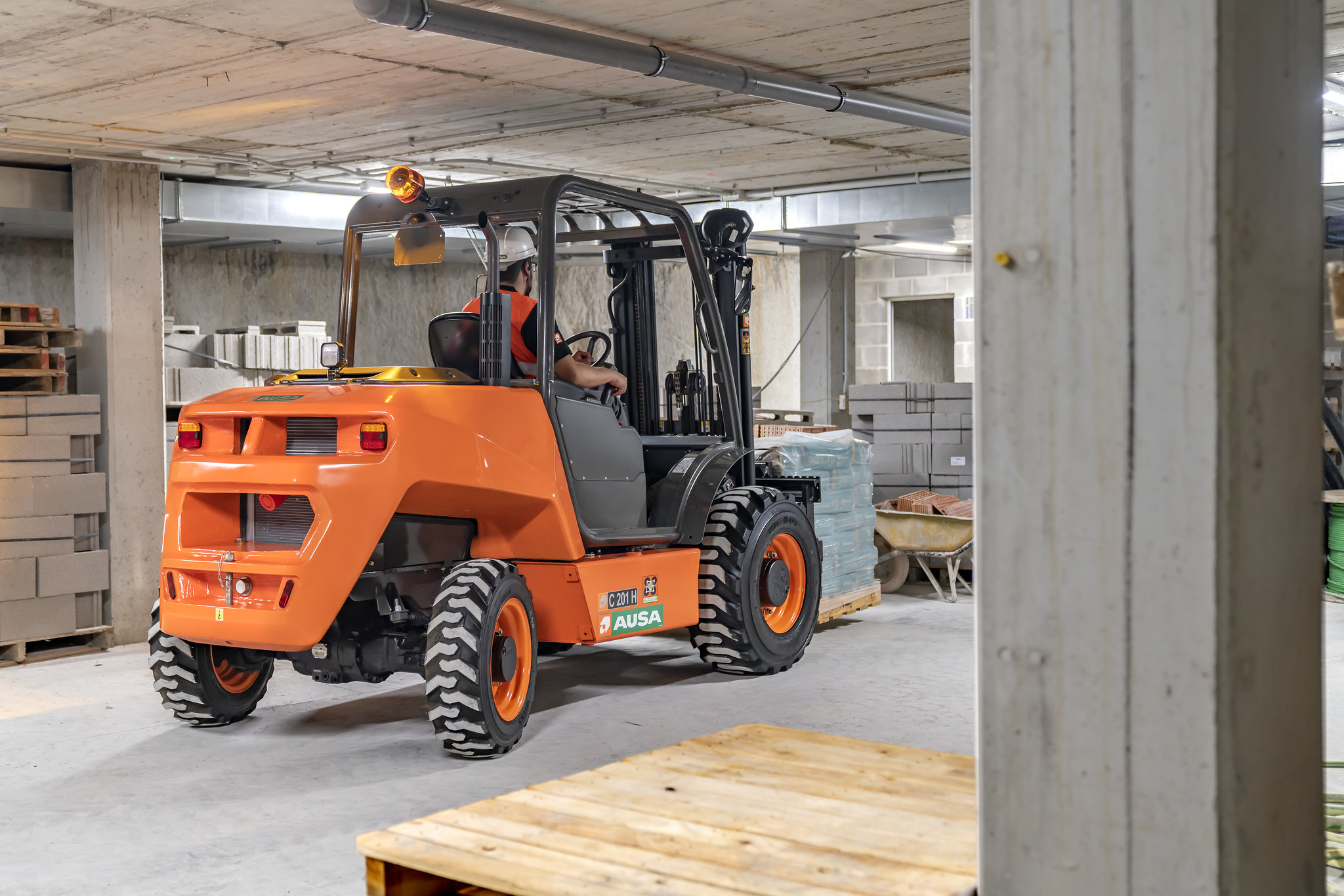

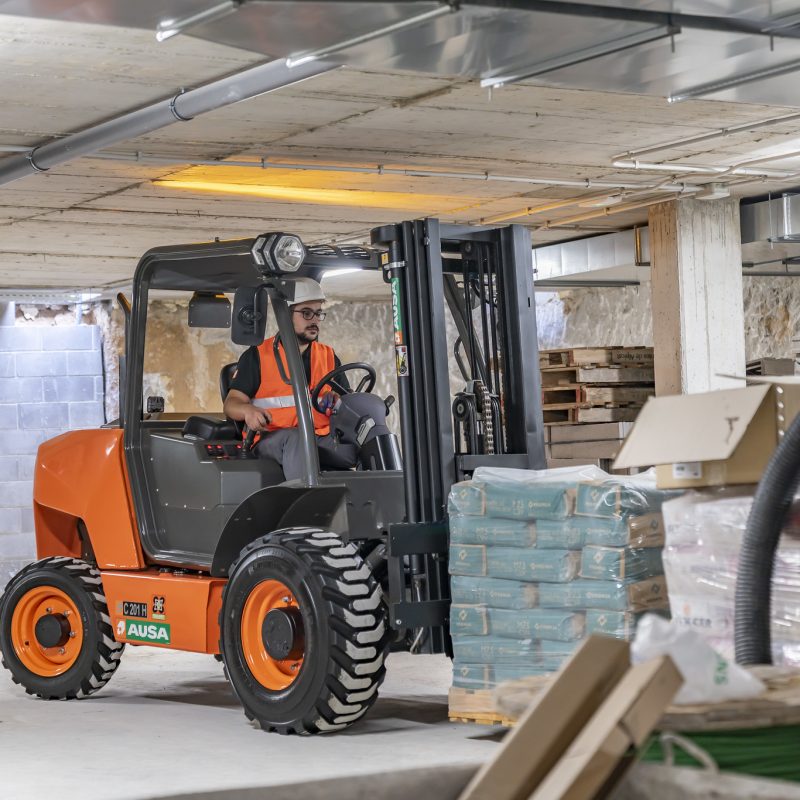

At just 2.09 m (82,28 in) high, it is perfect for entering and leaving car parks and enclosed spaces with low doors. Additionally, it is highly manoeuvrable, so it can move around nimbly in any space.
Thanks to its hydrostatic drive, maximum comfort and safety are assured. The transmission brake prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal.
Specifications
- Load capacity:
- Load capacity to 500 mm:
- Load capacity to 600 mm:
- Empty weight:
- Transmission:
- Maximum lift:
- 2000 kg
- 2000 kg
- -
- 3635 kg
- Hydrostatic
- 5400 mm
Key Features
- Compactness
- Joystick all in one hand
- Easy to maneuver
- High performance
- Low maintenance costs
- Tilting cab
Video
Specifications
Engine
- Brand:
- Model:
- Power:
- Torque:
- No. of cylinders:
- Emissions:
- Noise level (LwA):
- Kubota
- D1703-M-DI-E4
- 18.5 kW
- 97,4@1500
- 3
- Stage V - EPA Tier 4
- 104 dB(A)
Driving
- Max. speed:
- Max gradient:
- Ext turning radius:
- Traction:
- Tyres:
- 17 km/h
- 40 %
- 3020 mm
- 4x4 FullGrip / 4x2
- 12-16,5 27x8,5-15 / 7.00-12
Hydraulic System
- Hydraulic circuit:
- Flow rate:
- Working pressure
- Two gears pump
- 37 l/min
- 185 bar
Tank capacity
- Fuel
- Hydraulic system
- 62 l
- 51 l
Breaks
- Service:
- Parking:
- Hydraulic, sealed, multi-disc
- Negative, sealed, multi-disc
Mast
- Fork carriage:
- Carriage width:
- FEM 2B
- 1260 mm
