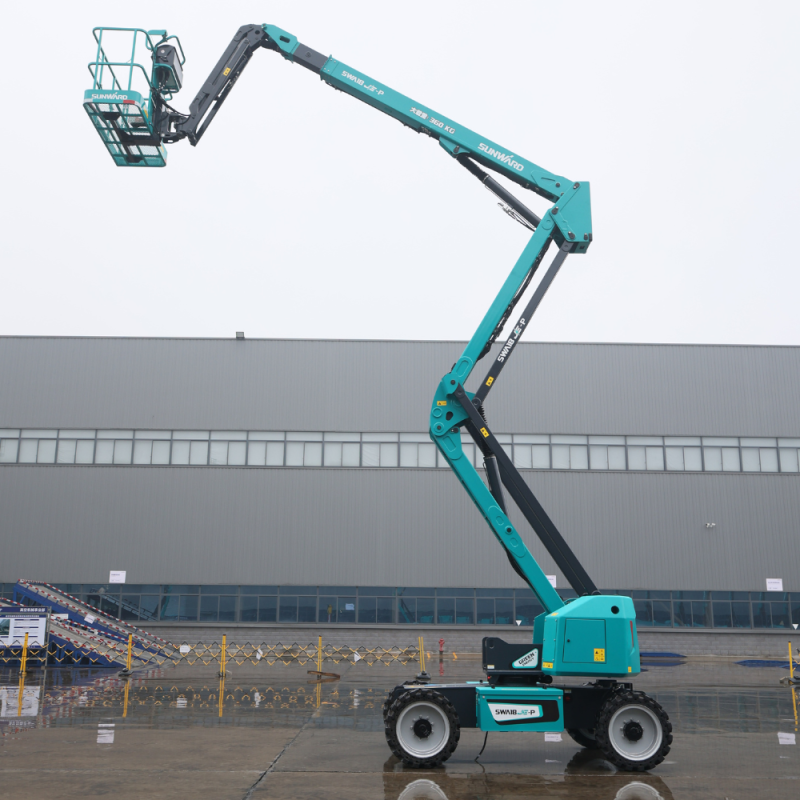

SWA 18JE-P
ARTICULATED BOOM LIFT
The SWA 18JE-P is Sunward’s advanced electric articulated boom lift, designed for high performance, safety, and sustainability. It offers excellent maneuverability and precision, making it ideal for urban construction, maintenance, and industrial use. Equipped with intelligent safety features, it’s a reliable and eco-friendly choice for working at height.
The SWA 18JE-P is Sunward’s electric articulated boom lift, designed to deliver maximum performance, safety, and sustainability on elevated worksites.
With an impressive 18-meter working height, 9.6-meter working radius, and zero tail swing, this lift offers superior maneuverability and precision—perfect for urban construction, maintenance, and industrial applications.
Powered by a high-capacity lithium battery and equipped with intelligent safety features, it sets a new standard for eco-friendly, high-efficiency aerial work platforms.
Specifications
- Max. working height:
- Max. horizontal span :
- Rated load:
- Overall weight:
- 18 m
- 9.6 m
- 260/360 kg
- 8270 Kg
Key Features
- Made for Europe
- Advanced safety features
- Reliable performance
- Comfort as standard
- Easy to service
Video
Specifications
Reach Specifications
- Maximum platform height:
- Maximum working height:
- Maximum horizontal span:
- Maximum horizontal span heightt:
- 16 m
- 18 m
- 9 m
- 7.8 m
Dimensions
- Length – retracted:
- Height – retracted:
- Overall width:
- Ground clearance – intermediate:
- Length of working platform:
- 7.5 m
- 2.24 m
- 2.3 m
- 0.37 m
- 1.83 m
Performance
- Platform rotation:
- Travel speed (retracted):
- Travel speed (extended):
- Turning radius (inner/outer):
- Gradeability – four-wheel drive – retracted:
- Maximum allowable working angle:
- 180°
- 5.8 km/h
- 0.8 km/h
- 2.06 m / 4.74 m
- 40%
- 5°
Features & Benefits
On top of its EU certification, the Sunward SWA 18JE-P, like all Sunward machines on the European market, is designed to meet European customer needs.
Safety is built into every detail of the SWA 18JE-P. Key features include:
- Load Sensing System to prevent overloading
Tilt Protection & Emergency Descent System for secure operation
360° Continuous Turntable Rotation for smooth, controlled access
Flashing Beacon, Buzzer, and Fault Diagnosis System for real-time operator feedback
Hydrostatic Automatic Leveling and Anti-Extrusion Technology for added protection in confined or uneven spaces
Operators can work with confidence, knowing the lift is engineered to meet demanding safety requirements.
Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWA 18JE-P’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 2 years of warranty, standard for all Sunward Aerial Work Platforms.
