SWE 155UF-2PB
MEDIUM EXCAVATOR

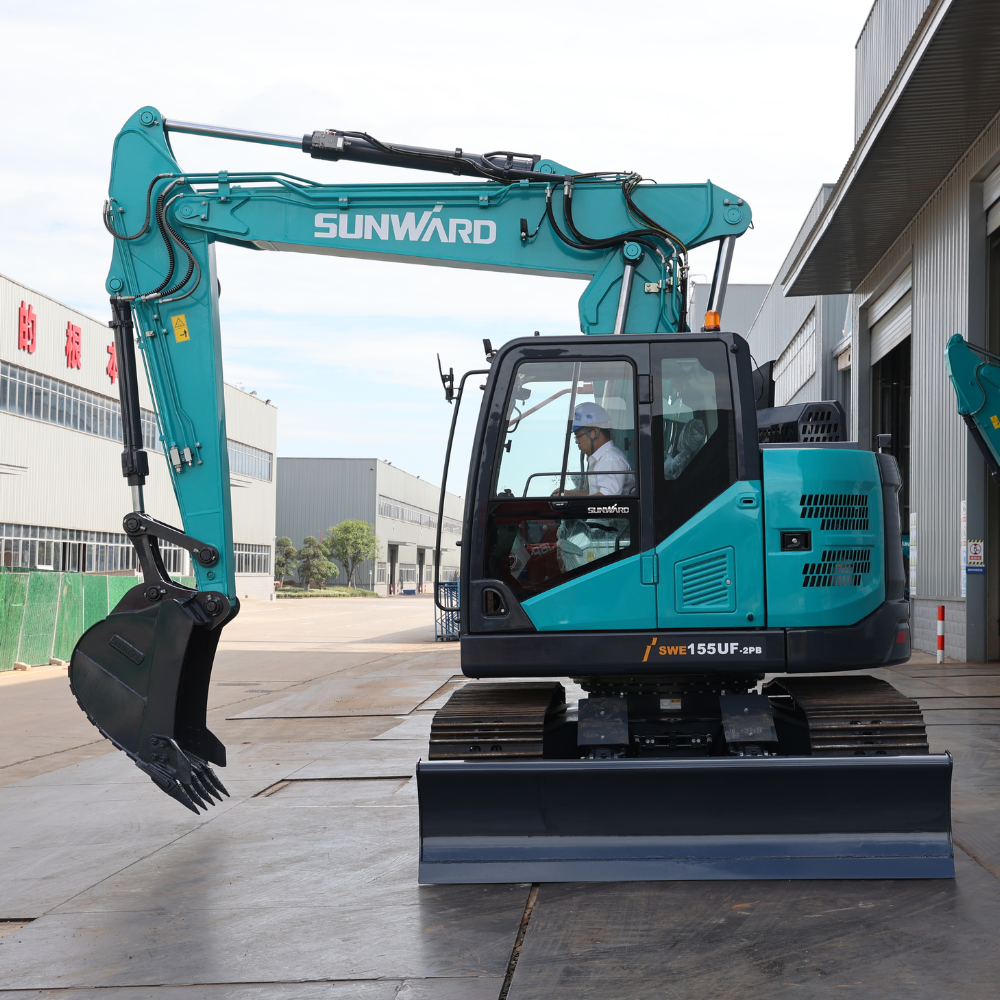

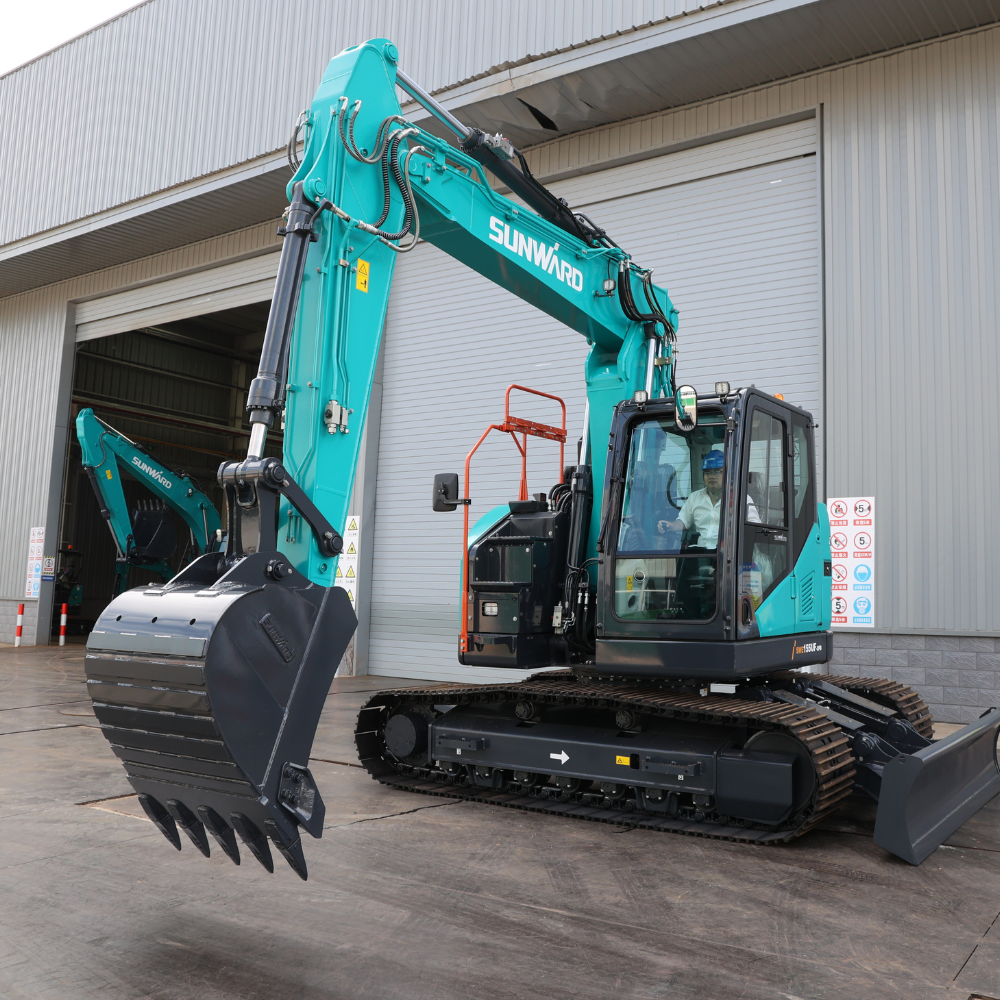

Looking for an excavator that will tear up a job site without taking up too much room? The Sunward SWE 155UF-2PB medium excavator features a very short-tail swing and a 2-piece boom allowing it to work in a wide variety of urban tasks, including operating in confined spaces and along walls. It is designed to be versatile and durable, with a long lifetime.
The SWE 155UF’s masterful design, Cummins EU Stage V engine, and enhanced hydraulics system deliver smooth operation and high productivity. This top‑of‑the‑line medium excavator offers excellent performance, comfortable and safe operation, and convenient maintenance.
In the Sunward tradition to always offer the best value for money, the SWE 155UF-2PB is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.
Specifications
- Emission rating:
- Operating weight:
- Power output:
- Max. digging depth
- Width:
- EU Stage V
- 17,000 Kg
- 90 kW
- 5600 mm
- 2600 mm
Key Features
- Made for Europe
- Powerful & reliable engine
- Premium components
- Compact design
- High working range
- Best value for money
Video
Specifications
Dimensions
- Operating weight:
- Standard bucket capacity:
- Shipping length:
- Shipping width:
- Height over cabin/canopy:
- 17,000 kg
- 0.61 m³
- 7945 mm
- 2600 mm
- 2945 mm
Engine
- Model:
- Emission rating:
- Displacement:
- Rated power output:
- Cummins QSF3. 8
- EU Stage V
- 3.8 L
- 90 kW
Hydraulic System
- Type:
- Displacement:
- Hydraulic pressure
- 2 variable piston pumps
- 2× 165 + 44 L/min
- 34.3/31.4 Mpa
Working Range
- Max. digging depth:
- Max. digging reach:
- Max. bucket digging force
- Max. arm digging force:
- 5600 mm
- 8490 mm
- 100 kN
- 76 kN
Features & Benefits
On top of its EU certification, the Sunward SWE 155UF-2PB, like all Sunward machines on the European market, is designed to meet European customer needs.
Achieving near‑zero emission levels, while delivering from 90 kW without compromising power, performance, or fuel economy, that’s the challenge fully met by the compact and powerful Cummins QSF3.8 engine. This engine enjoys wide popularity in the market, and so it has an extensive service network. It’s the engine Sunward required to power the SWE 155UF-2PB – and the fact that it complies with the European Union’s Stage V emission requirements goes without saying.
All key components in Sunward excavators are carefully selected, from the Cummins engine to the hydraulic system. Since hydraulics are often considered the heart of the machine, Sunward sources exclusively from top-tier suppliers known for their quality and performance. For the SWE 155UF-2PB, we selected trusted manufacturers to supply the hydraulic pump, swing motor, and Main Control Valve (MCV). These highly reliable components are specifically designed to meet the demanding requirements of hydraulic excavators, offering excellent efficiency, durability, and long service life.
The SWE 155UF-2PB has been designed with durability in mind. The Cummins engine has built a reputation for high durability, even in extreme working conditions. Also, special attention has been put into the key parts of the SWE 155UF-2PB, such as the boom and the arm, which are designed with an increased sheet material thickness. All supporting elements are made of high‑strength, high‑ductility, and structural steel die‑forged pieces. This has the great advantage of providing elements with both high wear resistance and structural strength. This process delivers a massive increase in reliability operating under heavy‑duty work. For example, the swingarm and bucket rod are designed with the reliability standard of 20 000 hours.
Also, the SWE 155UF-2PB’s heavy-duty implements are delicately annealed, which completely eliminates the residue stress in weld seams and increases the machine’s reliability significantly. After welding, the natural cooling process (with the risk of uneven cooling) is prevented by heating the metal in an isolated chamber to 600 – 800°C and then cooled down slowly (5 – 8 hours), avoiding residual stress and defects. This kind of cooling process is usually not adopted by manufacturers who want to save time and money.
Last but not least, the X chassis has been reinforced, bringing excellent resistance to distortion.
Thanks to the inline 4-cylinder Cummins QSF3.8 engine, the SWE 155UF-2PB uses less fuel, with total fluid efficiency (includes both fuel and Diesel Exhaust Fluid) improved by up to 3 percent, with no compromise on performance (this engine has an even better performance compared to it previous version, delivering 10 percent more power and almost 20 percent more torque across the entire RPM range).
Sunward’s SWE 155UF-2PB medium excavator also has the highest hydraulic efficiency, which results in low fuel consumption. With the new premium quality main pump and the innovative thinking from Sunward, we increased the machine’s displacement by 7%, power by 4%, and volume efficiency by 6% – making the entire excavator more energy efficient).
Finally, thanks to the 3 attachment work modes, operators can enjoy versatility, but also fuel consumption optimization.
In the spirit of Sunward’s motto – ‘Innovation Leads to Value’ – the design and engineering of the SWE 155UF-2PB is focused on generating optimal value for the machine’s owner while offering optimum versatility to the machine’s operator. The SWE 155UF-2PB can be used in a large variety of working conditions and applications. And thanks to the 3 separate auxiliary lines (2 of them are equipped with a shut-off valve for easy and oil leakage-free installation of attachments), the 3 bucket working modes, and the 3 attachment work modes, an operator needs only a few minutes to fully appreciate the possibilities offered.
To reduce maintenance time and cost, the covers at the rear and on the side open fully to provide direct access to the service points. With very easy access to the fuel tank and centralized grease fittings, the SWE 155UF-2PB is as easy to maintain as it is to operate.
The high‑strength SWE 155UF-2PB cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments. Despite its compact size from the outside, the SWE 155UF-2PB offers easy access to the roomy cab, welcoming operators of all sizes from everywhere in Europe. Thanks to the large windows and the well‑organized cab, everything is designed to keep operators comfortable and productive as well as safe.
Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 155UF-2PB’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
