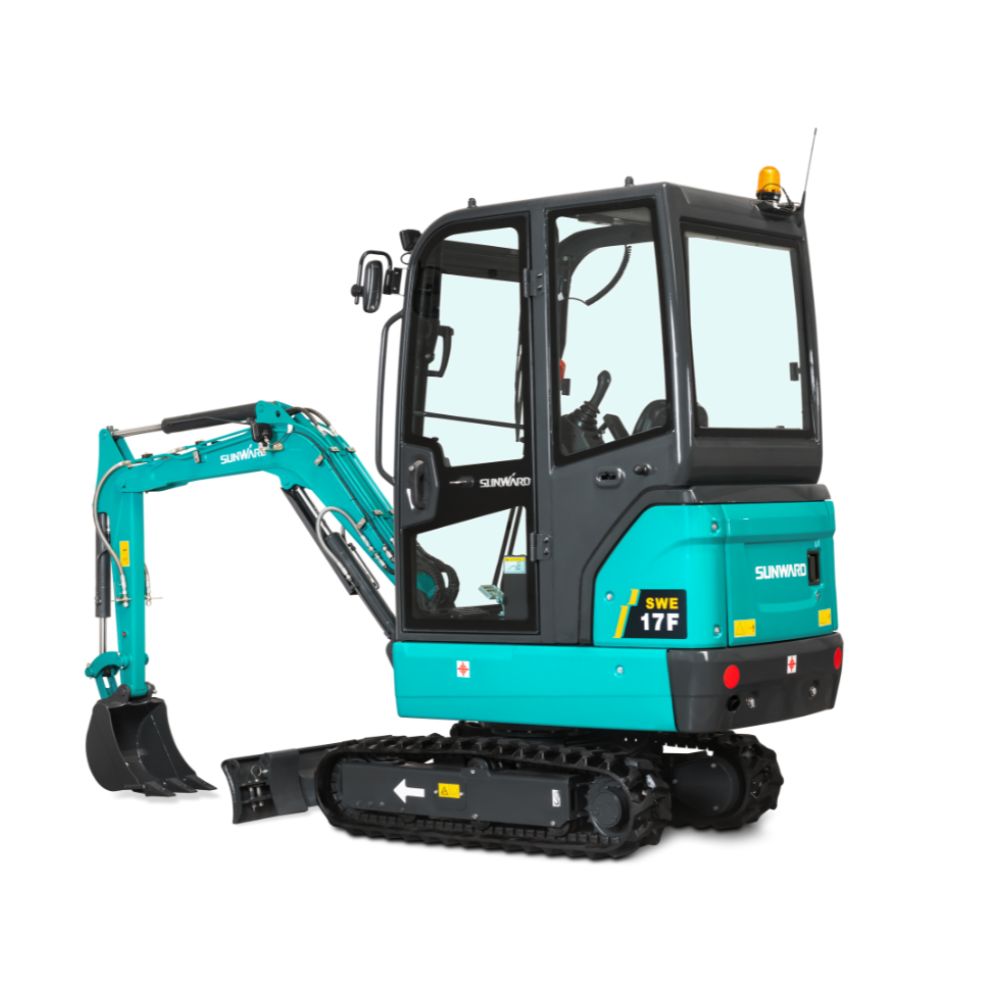

SWE 17F
MINI EXCAVATOR
The Sunward SWE 17F was developed to meet the specific needs of the European market. With the new SWE 17F, Sunward is introducing a very nice design, in line with the F Series models. But more than design, the SWE 17F is excelling in terms of versatility, durability, reliability, performance, and easy maintenance. Last but not least, the comfort of the SWE 17F is exceptional.
Specifications
- Emission rating:
- Operating weight:
- Power output:
- Max. digging depth:
- Width:
- EU Stage V
- 1780 Kg
- 13.4 kW
- 2060 mm
- 990-1360 mm
Key Features
- Made for Europe
- Powerful & reliable engine
- Premium components
- Compact design
- High working range
- Best value for money
Video
Specifications
Dimensions
- Operating weight:
- Standard bucket capacity:
- Shipping length:
- Shipping width:
- Height over cabin/canopy:
- 1780kg
- 0.035 m³
- 3840mm
- 990mm
- 2360 mm
Engine
- Motor Type:
- Emission rating:
- Displacement:
- Rated power output:
- Yanmar 3TNV80F-SSU
- EU Stage V
- 1.267L
- 13.4 kW
Hydraulic System
- Type:
- Displacement:
- Hydraulic pressure:
- Single Axial Piston Pump
- 62 L/min
- 24.5 Mpa
Working Range
- Max. digging depth:
- Max. digging reach:
- Max. bucket digging force
- Max. arm digging force:
- 2060 mm
- 3885 mm
- 21 kN
- 12 kN
Features & Benefits
On top of its EU certification, the Sunward SWE 17F, like all Sunward machines on the European market, is designed to meet European customer needs. In the case of the SWE 17F, we can even tell that it has been developed especially to me the need of the European market.
We chose the powerful Yanmar 3TNV80F-SSU engine featuring low fuel consumption, low noise and vibration levels, and high-altitude performance control, ensuring intensive work under severe environment. This 13.4 kW industrial diesel engine is both EPA Final Tier 4 and EU Stage V compliant, and its compact design means it can fulfill a variety of roles. The Yanmar engine perfectly matches with the power of hydraulic system, guarantying smooth operation. This engine is the perfect fit for our reliable and versatile Sunward SWE 17F.
All key components in Sunward excavators are carefully selected, from the engine to the hydraulic system. Since hydraulics are often considered the heart of the machine, Sunward sources exclusively from top-tier suppliers in the market. For the Sunward SWE 17F, we chose premium manufacturers as our main suppliers for the hydraulic pump, traveling motor, and swing motor. These components are known for being efficient, reliable, and compact – qualities that play a key role in the overall reliability of the SWE 17F.
The SWE 17F’s extendable undercarriage – the track width can be extended from 990 mm to 1 360 mm – provides robust stability,
ensuring safe and comfortable operation in all kinds of job applications, including restricted work sites. When retracted, it allows the SWE 17F can drive through doors. This compact design makes the SWE 17F mini-excavator ideal for transportation. The SWE 17F does more than simply align with the EU’s transportation regulations – truly compact (990 mm width) and lightweight (1 780 kg), it allows easy, safe and secure transport.
Despite its very compact size, the SWE 17F has powerful lifting & digging forces and long reach capacity. The SWE 17F has exceptional digging forces of over 21 kN (bucket) and almost 12 kN (arm). And when it comes to its long-reach digging capacity, the SWE 17F boom cylinder design provides a reach of 1 110 mm long.
A mini-excavator’s versality starts with how well it is designed for transportation. The SWE 17F does more than simply align with the EU’s transportation regulations – truly compact (990 mm width, but can be extended to 1 360 mm) and lightweight (1 780 kg), it allows easy, safe and secure transport. A wide range of attachements can be easily fitted to answer a variety of applications.
Sunward is your smartest investment in reliability, performance and high ROI. Indeed, the SWE 17F’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
