SWE 60UF
COMPACT EXCAVATOR
The Sunward SWE 60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. Combining both power and precision, the SWE 60UF offers also a comfortable and safe cab. Last but not least, its exceptional digging reach performance means no worksite is off-limits.
Of course, because we know that safety and comfort should go hand-in-hand, the SWE 60UF keeps you safe and provides every comfort in all working conditions. Last but not least, in the Sunward tradition to always offer the best value for money, the SWE 60UF is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.
Specifications
- Emission rating:
- Operating weight:
- Power output:
- Max. digging depth:
- Width:
- EU Stage V
- 6000 Kg
- 35 kW
- 3700 mm
- 2000 mm
Key Features
- Made for Europe
- Powerful & reliable engine
- Premium components
- Compact design
- High working range
- Best value for money
Video
Specifications
Dimensions
- Operating weight:
- Standard bucket capacity:
- Shipping length:
- Shipping width:
- Height over cabin/canopy:
- 6000 kg
- 0.18 m³
- 5680 mm
- 2000 mm
- 2570 mm
Engine
- Model:
- Emission rating:
- Displacement:
- Rated power output:
- Kubota V2607-DI-T
- EU Stage V
- 2.6 L
- 35 kW
Hydraulic System
- Type:
- Displacement:
- Hydraulic pressure
- 1 variable plunger pump
- 158.4 L/min
- 25 Mpa
Working Range
- Max. digging depth:
- Max. digging reach:
- Max. bucket digging force
- Max. arm digging force:
- 3700 mm
- 6260 mm
- 47 kN
- 31 kN
Features & Benefits
On top of its EU certification, the Sunward SWE 60UF, like all Sunward machines on the European market, is designed to meet European customer needs.
We chose the powerful Kubota V2607-DI-T engine for several good reasons. This engine is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 35 kW. The Kubota V2607 offers powerful performance, exceptional reliability, and long service life to meet a wide range of applications. It also meets the EU Stage V emission regulations. The perfect fit for our reliable and versatile SWE 60UF.
All key components in Sunward excavators are carefully selected, from the Kubota engine to the hydraulic system. Since hydraulics are often considered the heart of the machine, Sunward works exclusively with leading suppliers known for their quality and performance. For the Sunward SWE 60UF, we selected trusted manufacturers to provide the hydraulic pump, travel motor, and swing motor. These components are efficient, reliable, and compact -qualities that play a crucial role in ensuring the SWE 60UF’s overall reliability and long-term performance.
The SWE 60UF has exceptional digging forces – 47 kN (bucket) and 31 kN (arm) – easily rivaling all 6t excavator competitors on the market. And when it comes to its long-reach capacity, the SWE 60UF’s boom cylinder design provides a ground reach of over 6.1 meters (6 140 mm) and a digging reach that’s over 6.2 meters (6 260 mm) long – making this compact excavator the benchmark of its range.
A compact excavator’s versatility starts with how well it is designed. And in terms of design, the SWE 60UF is a really nice-looking excavator. This zero-tail compact excavator has truly compact dimensions (2 000 mm width) and is lightweight (6 000 kg), allowing to bring power and easy work even if very tight areas, without any compromise on safety. Moreover, the SWE 60UF can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines and one line for hydraulic return as standard. Thus, a wide range of attachments can be easily fitted to answer a variety of applications.
This slightly Sunward SWE 60UF mini excavator has it all from the day it leaves the factory:
– Auto idle engine to save fuel and limit the engine’s consumption. – While other manufacturers usually use a flow throttle (because it’s cheaper), we at Sunward opt for a Load Sensing (hydraulic) system, which provides better energy saving possibilities.
– Safety valves for the boom cylinder for safer operations.
– Auto-shifting traveling motor for smooth operations to the operator.
– TOPS, FOPS & ROPS cab.
– Battery cut-off switch for safer operations and prolonged battery lifetime and power – which is especially appreciated in the cold weather of Scandinavian countries.
– Double Acting Hydraulic Circuit
– Factory-fitted Hydraulic Quick Hitch Lines
– Factory-fitted Hammer & Rotation Line
– Factory-fitted Case Drain Line
– Factory-fitted Dual Proportional Joysticks
– Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
– 3 LED work lights as standard: 2 on the front of the cab, and 1 on the left side of the boom.

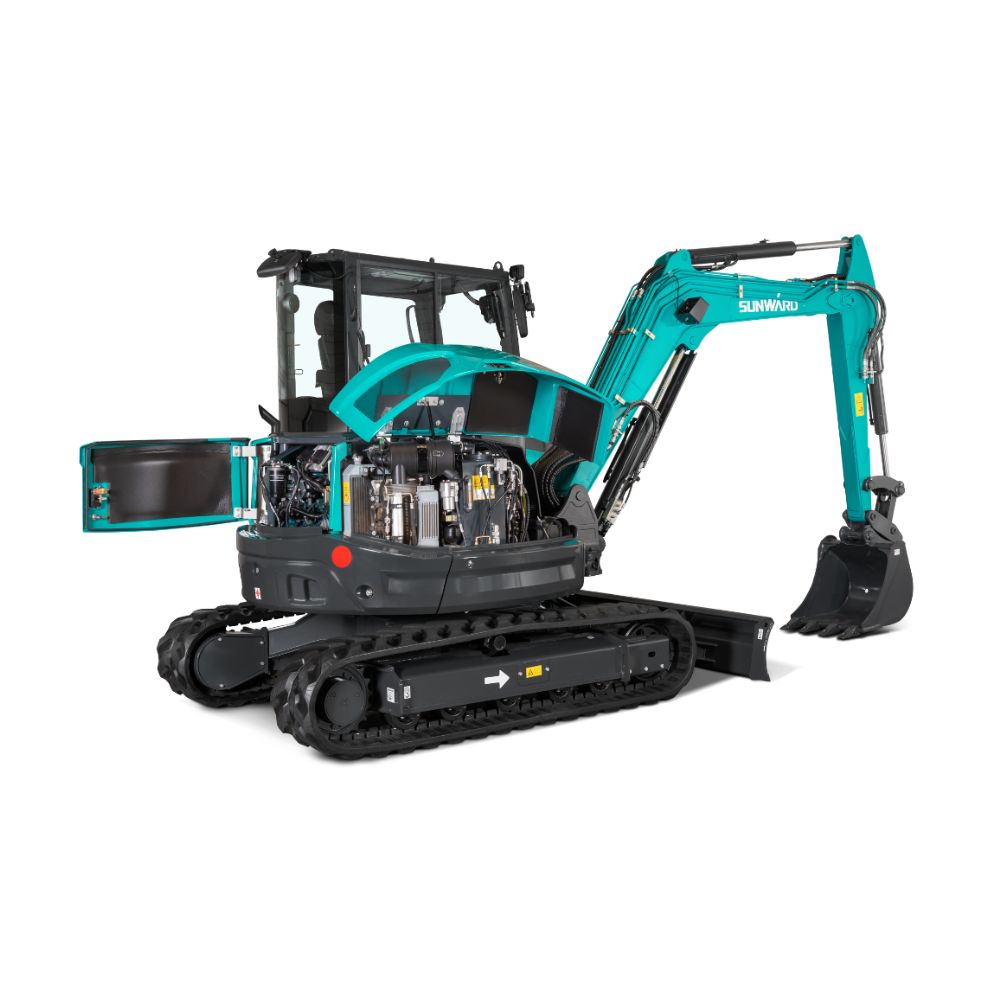

To reduce maintenance time and cost for the SWE 60UF, the covers at the rear and on the side provide direct access to the service points. The standard service points – for fuel, oil, and air filters – are directly accessed via the cover at the rear. So, with very easy access to the fuel tank and centralized grease fittings, these mini excavators are as easy to maintain as they are to operate.
The high‑strength SWE 60UF cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments. Despite its compact size from the outside, the SWE 60UF offers easy access to the roomy cab, welcoming operators of all sizes from everywhere in Europe. Thanks to the large windows and the well‑organized cab, everything is designed to keep operators comfortable and productive as well as safe.
Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 60UF’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
